Agents

A scan is executed by an agent. There are two kinds, and both are rows in the same table, listed together on the Agents page.

The built-in agent is the web process itself. Created automatically at startup, with no configuration — which is why a single-machine install works out of the box.

Remote agents are separate worker processes on other machines, speaking a short protocol: hello, sealing-key (for a delegated agent), jobs, rules, heartbeat, result, and failure for a scan it claimed and could not run.

Two durations cross it, in two different forms, for anyone writing a client against the published contract. GET /api/v1/agent/jobs?wait=30 takes the long-poll wait as whole seconds — 0 by default, which answers at once, and held for at most 30. The result's duration is ISO-8601 text ("PT12.345S"), the format: duration the contract declares; a number of seconds from an older agent is still accepted. In the result, [] means a step ran and found nothing, and null or a missing field means it did not run — which is why the difference matters: only the first resolves that step's backlog.

Both run the same code and both send back the scanners' raw output for the control plane to normalise. A result produced on another machine is therefore indistinguishable from a local one: same rows, same enrichment, same license policy, same reconciliation.

When to add one

• Keep the Docker socket off the host that serves the interface.
• Reach a repository or registry only routable from another network segment.
• Add capacity.

Running one

# On the agent's machine — the key comes from /agents, shown once
VECTISPIRE_URL=https://vectispire.internal \
VECTISPIRE_AGENT_TOKEN=zsk_... \
java -jar vectispire-agent.jar      # built by ./gradlew :vectispire-agent:bootJar, JDK 25

Or as a container, which is how it is meant to be deployed:

docker compose --profile with-agent up -d

An agent polls over HTTP, so it needs no inbound port. Its key carries the agent scope and no database access — that is a security property rather than a detail. An agent with a database connection would also need ENCRYPTION_KEY, which is the ability to decrypt every deploy key Vectispire holds.

In the shipped composition the agent reaches only the API and a daemon proxy of its own; the database and the control plane's proxy are on networks it is not attached to. That keeps it from asking for the key — it does not make one host two: both proxies reach the same daemon, and daemon access is root there. The profile is for evaluating the protocol. For the isolation, run the agent on another machine and set VECTISPIRE_EMBEDDED_WORKER=false on the control plane.

Running several scans at once

Concurrent scans (max_concurrent) is how many scans one agent runs in parallel: from 1 to 16, 1 when nothing is said. Set it when you declare the agent, or later with the sliders icon on its row — or PATCH /api/v1/admin/agents/{id} with {"max_concurrent": 4}. A value outside 1–16 is refused with a 400 rather than quietly rounded. The row shows it as running / allowed, and a change is written to the audit log.

It is enforced on both sides. The control plane hands an agent a new scan only while the scans it holds — claimed, not yet reported, lease still live — are fewer than the limit, and it counts them in the database, so two polls of the same agent cannot take it past the limit together. The agent stops polling as soon as it is full.

The limit belongs to the agent's row, not to a process. Two processes started with the same key share one limit between them — and, in delegated mode, only the one that announced itself last can open a sealed key. For more machines, declare more agents.

Sizing it

Each scan runs up to five scanner containers one after the other, each capped at 2 GB of memory and at all but one of the Docker host's cores. The vulnerability matcher's database — about 3 GB — is downloaded once for the host, not per scan, and shared read-only by every scan (VECTISPIRE_VULNERABILITY_DB_DIR, see Configuration): count it once, plus as much again while an update is downloaded beside the current one. Per concurrent scan, count roughly:

	per scan
CPU	one core
Memory	2 GB, on top of the agent's own JVM
Disk (temporary directory)	the clone and the SBOM — the vulnerability database is the host's, counted once

Scans past what the machine can hold do not wait their turn: they compete for the same cores and time out together, 15 minutes per scanner. Stay below the machine; more capacity is another agent.

Changing it, and stopping an agent

A lowered limit applies to the next claim. No new scan starts until the running ones fall below it, and nothing running is interrupted. The agent learns the new value from the answer to its next poll — raised or lowered, without a restart.

Stopping an agent waits for its scans. On SIGTERM — docker stop, a rolling update — it stops claiming and waits for the scans in progress to be handed back. Abandoning them would cost more than waiting: the protocol has no call to give a scan back unrun — failure says the scan could not run and spends an attempt, and a stop is neither — so an abandoned scan keeps its lease until it lapses (20 minutes after its last heartbeat), then returns to the queue having used one of its three attempts, and its work is lost. Give the container a grace period as long as your longest scan — stop_grace_period: 30m in compose; Docker's default is 10 seconds.

If the process is killed first — or the machine dies — that lapse is exactly what happens. Until then its scans still count against its limit, so an agent restarted at once claims only what is left; once they lapse they no longer count, even before the queue puts them back.

When a scan cannot run on an agent

A clone refused — a host key that changed, a deployment key the forge does not know — a workspace that could not be made, a delegated credential that would not open: anything that stops the agent before a result exists. The agent says so at once (POST /api/v1/agent/jobs/{id}/failure), with the reason and whether another attempt could pass — the report's kind:

Kind	What the agent met	What becomes of the scan
permanent	a host key that changed or is not pinned, authentication refused (SSH or HTTPS), a repository or a branch that does not exist, a sub-path the clone does not hold, a credential that will not open or cannot be used here, a URL the clone's own guard refuses (a link-local host, a redirect)	failed at once, on this attempt, whichever it is
transient	the network, a timeout, the forge answering 5xx or 429, a Docker daemon that did not answer — and anything the agent could not classify	back in the queue with the attempt counted, claimable again after 1 minute, then 5, then 15, failed for good at the third attempt

The agent decides the kind from the failure's type — MINA's SSH disconnect reason, JGit's own exception, the HTTP status the forge answered — never from the message's words. When in doubt, transient: an unknown failure retries rather than failing a scan for good over a passing incident. A lapsed lease is transient too, and waits the same way. The delays are the control plane's VECTISPIRE_SCAN_RETRY_DELAYS (Configuration).

The reason is on the scan, in the history and the scan's page — Attempt 1 of 3 could not run on agent "edge"; the scan is back in the queue, not before …: … — and the page says when the next attempt may start while the scan waits. Each report is audited as AGENT_SCAN_FAILED, with its kind.

• Scrubbed before it leaves the agent, and again on arrival. The agent removes the deployment key, the token, its API key and its signing key from the text by value; the control plane removes whatever has a secret's shape (a URL's user part, a private key block, a bearer token). One line, at most 1,000 characters.
• Signed like a result. An agent whose signing key is pinned signs the report with it (its own context: a result's signature does not pass for a report's), or it is refused with 403 and audited as AGENT_RESULT_REFUSED — otherwise a stolen API key could spend every attempt of every scan it claims.
• Once, for that attempt. The report names the attempt the claim handed the agent; a report sent twice, or one about an attempt the scan has since moved past, answers 409 and changes nothing — as does one from an agent that does not hold the scan.
• An older control plane answers 404, and the agent falls back to what it always did — the lease lapses, and the reason is in the agent's log only; it says so there. An older agent against this control plane sends no report, and its failures end as they did; one that reports without a kind is read as transient.

A retry is often the same agent. With one agent, a scan whose clone met a passing network error used to spend its three attempts in as many polls — seconds — before the incident had passed; it now waits between them. A clone refused for good fails at its first attempt, with the reason.

The built-in worker follows the same rule. A scan the control plane could not run itself — its runner failed before a result existed — is classified the same way, waits the same delays and carries a reason scrubbed the same way: which executor took a scan does not change its fate.

Credentials modes

Mode	What the controller sends	When
local (default)	nothing	the agent's machine has its own git access — over SSH: a private repository over HTTPS cannot be cloned in this mode. A compromised agent yields only what that machine was granted. That access is the .ssh of the agent process's home — in the with-agent profile, $VECTISPIRE_AGENT_WORK_DIR/home/.ssh, empty unless you put a dedicated key there; the composition mounts no ~/.ssh of yours.
delegated	the deploy key or HTTPS token, per job	a trusted machine only.

A local agent's first SSH clone needs a known_hosts you filled in. It clones with its machine's own SSH access, and ssh refuses a host its known_hosts does not list — the scan fails with "The host key of … was refused by this machine's own known_hosts". That refusal is ssh's default and is kept: write the forge's keys to $VECTISPIRE_AGENT_WORK_DIR/home/.ssh/known_hosts (the with-agent profile) with ssh-keyscan, after comparing their fingerprints with the ones the forge publishes — the commands are in A local agent: fill in known_hosts. A delegated agent records a first contact itself and refuses a changed key.

In delegated mode the key or token only ever leaves sealed for the agent's own process, and never in the clear — over HTTPS or not. It is never written to disk on the agent — it is parsed in memory and handed to the transport — and every delivery is audited.

Before delegating credentials: pin the signing key

A delegated agent receives nothing until a result-signing key is pinned for it — see Attesting an agent's results — and its private half is in the agent's configuration. The reason is where the sealing key comes from. The agent makes a fresh X25519 pair at every start and announces the public half; the control plane seals credentials for it. That announcement crosses the same network path as the credentials, so a TLS-terminating proxy on that path could otherwise change it. The agent therefore signs its sealing key with its pinned signing key, and the control plane accepts only a sealing key whose signature verifies against the key an administrator pinned (decision 0031). Sealing takes a TLS-terminating proxy out of the trust boundary, given a pinned signing key.

A credential opens only for what it was sealed for. A deployment key is sealed as a deployment key; an HTTPS token is sealed for the host and the user name it travels with, and the agent opens it under those, then sends it to that host alone. A host changed on the way leaves an envelope that no longer opens, and the scan fails rather than handing the token to another server. An agent older than 0.11.0 opens envelopes bound to nothing: its signed announcement is refused, the audit entry says older than this control plane … Update the agent, and it is handed no credential, so update every delegated agent with the control plane.

So, for each delegated agent:

1. Pin a signing key on its row (the lock icon on /agents), and set the private half shown once as VECTISPIRE_AGENT_SIGNING_KEY in the agent's configuration.
2. Run an agent of this version and restart it. After its hello it announces its sealing key, signed; the log says Sealing key verified by the control plane.
3. The row now reads Sealed end to end. Until then it reads No verified sealing key: credentials withheld: the agent is not handed the scans that need a key or token, which stay in the queue for an executor that can run them — a verified agent or the built-in worker — without spending any of their attempts. Image scans and repositories without a credential still go to it. When those scans are all that is waiting for it, its poll is answered 412 with the step that is missing, and its log says so on every retry; nothing is sent. If no other executor can take them, they wait until this agent is fixed. The control plane says so too: the gauge vectispire.scans.credential.unserved (under /actuator/metrics) counts the waiting scans of repositories carrying a credential that no executor able to be handed it serves — an enabled local agent, a delegated one with a verified key, or the built-in worker when it runs — and its log warns, at most every fifteen minutes and again when the count grows, naming the labels and the agents that would take them but hold no verified key. The Agents screen shows the same figure as a warning above the queue, with those labels, those agents and what to do (GET /api/v1/admin/agents/credentialed-backlog).

Rotation is automatic. Each start makes a new pair, stamped with its creation time; the control plane keeps the newest key signed with the pinned key and refuses an older one (409, audited). A hello without a key, or with one nobody signed, never replaces or clears the accepted key.

Resetting it is an administrator's act. On /agents, the eraser icon on the row of an agent that reads Sealed end to end forgets its key, after a confirmation — or DELETE /api/v1/admin/agents/{id}/sealing-key. Use it for an agent host whose clock went back, so that its new keys all read as older, or for a key suspected of having leaked; newer keys fix everything else on their own. Pinning, replacing or removing the signing key forgets it too. Both are audited. Until the agent proves a new key, it is handed no delegated credential: the row reads credentials withheld again and its delegated scans wait in the queue until it announces a new signed key, at its next start or its next claim.

A signature that does not verify is refused with 403, written to the audit log as AGENT_SEALING_KEY_REFUSED and sent to the SIEM as VECTI-SEC-020: the agent's configured key is not the pinned one, or the key was not made by the agent.

Upgrading. An agent older than this version cannot sign its key: a current control plane hands it no delegated credential (412, in the agent's log) while its hello, local mode and image scans keep working. An agent of this version talking to an older control plane still works as before — its hello carries the unsigned key that control plane seals for.

Prefer local. It bounds the damage a compromised agent can do to that machine's own access, which is the entire reason for running scans on a separate host in the first place.

Attesting an agent's results

This is the one control worth turning on before the others. Handing back a scan result is the heaviest operation in the product: artifacts that are present and empty mean "analysed, found nothing", which resolves the target's whole backlog of that type — silently, and correctly. So whoever can post a result can make a target's vulnerabilities disappear from every screen, every export and every gate verdict, leaving a scan that looks like it ran.

Until a key is pinned, the only thing standing between that and a stolen VECTISPIRE_AGENT_TOKEN is the token itself — and a token lives in a compose file, an environment variable and a CI secret store, and travels on every poll.

On /agents, the lock icon on an agent's row pins a key. The control plane generates an Ed25519 pair, keeps the public half on the agent's row and shows you the private half once:

VECTISPIRE_AGENT_SIGNING_KEY=<the value shown once>

Put it in the agent's configuration and restart it. Until it has the key, its results are refused with 403 and the refusal is written to the audit log as AGENT_RESULT_REFUSED; so are its failure reports.

Prefer generating the pair yourself if you would rather the private half never existed here at all: PUT /api/v1/admin/agents/{id}/signing-key accepts a base64 public key instead of the word generate.

The key is never one the agent announces, and that asymmetry with the sealing key is the whole point. A signature verified against a key its signer published on the same channel proves only what the bearer token already proved. This one has to arrive from somebody who is not the agent.

The same key vouches for the agent's sealing key, which is why a delegated agent receives no credential without it — see Before delegating credentials.

The row says which state each agent is in — Results attested or Results unsigned — because an operator who believes their fleet is attested has no other way to find out it is not.

Disabling the built-in agent

That is how you say "run nothing here". Queued scans then wait for a remote agent instead of quietly using the web instance.

Worth doing on any deployment where the interface host should not have a Docker socket at all.

Pinning a target to an agent

Set Required agent on the repository or image. Use it for targets only routable from one segment — not as a load-balancing tool, since a pinned target stops being scanned when that one agent is down.

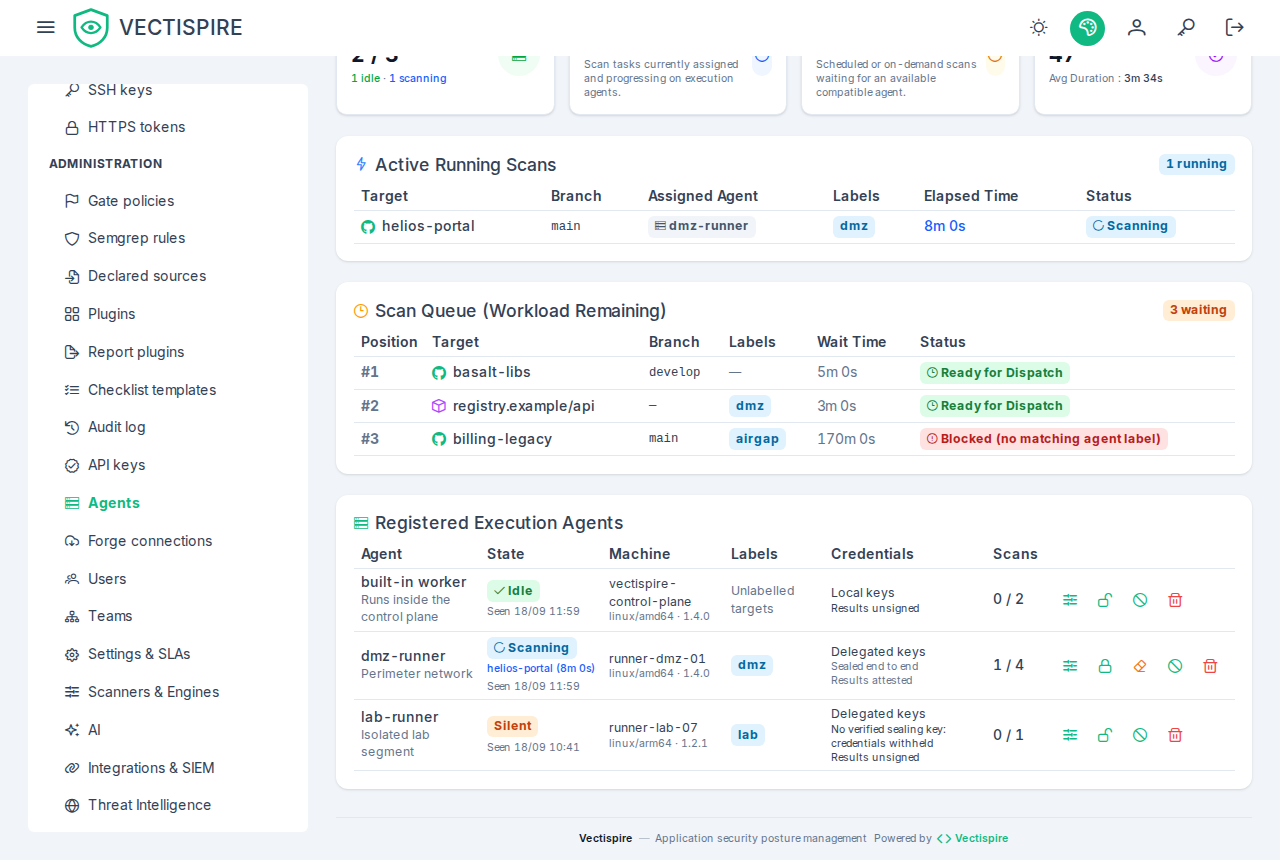

Reading the page

Each agent shows its running scans against its limit — see Running several scans at once — and when it was last heard from: its hello, each poll for work — found or not — and each lease renewal during a scan, written at most every fifteen seconds. Two minutes without any of them and it reads as offline. An agent that has never announced has not reached the control plane at all: check the URL, the token, and that outbound HTTPS is allowed.
